Sen Zhang

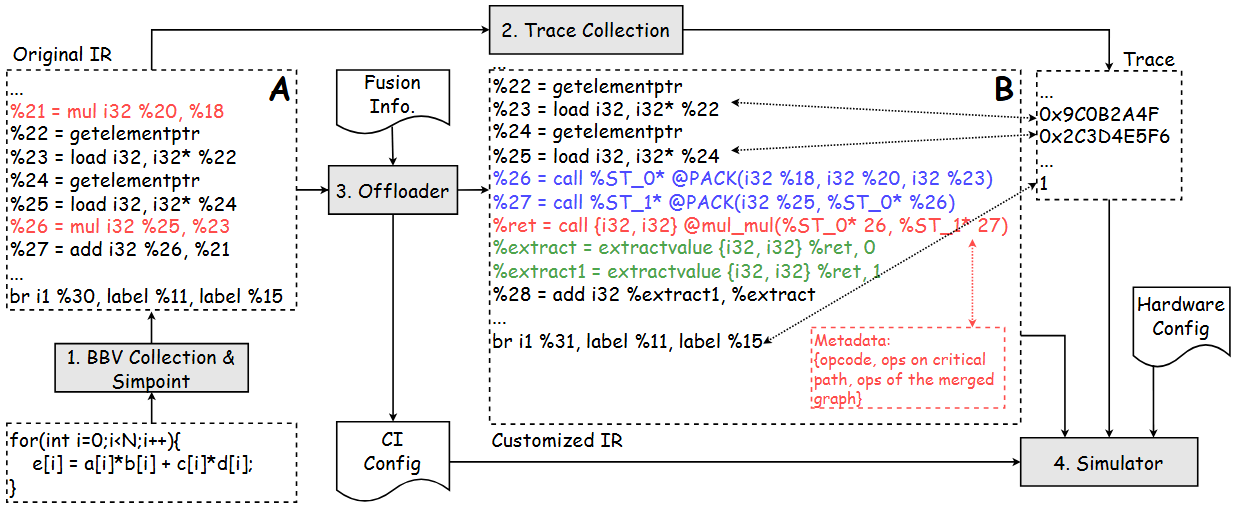

Pre-RTL ISA-agnostic simulators have been established for designing heterogeneous systems, but few of them are suitable for evaluating a general-purpose processor (GPP) with custom instructions (CIs). MosaicSim [1], a state-of-the-art ISA-agnostic simulator, still has several limitations for CI design and simulation. First, it shows inaccuracy in simulating GPPs due to an oversimplified performance model. Second, as designed for kernel simulation, it lacks support for running complex real-world benchmarks. Third, it cannot evaluate fine-grained irregular CIs due to the lack of the ability to represent or define them in benchmarks. To this end, we propose CISim, a new ISA-agnostic simulation framework containing an offloader that generates and integrates CIs into benchmarks, along with a simulator capable of executing benchmarks with CIs. Evaluations show that CISim is accurate by validating against Gem5 [2] and achieves higher accuracy than MosaicSim. A case study evaluating CI exploration methods highlights the strength and flexibility of CISim.

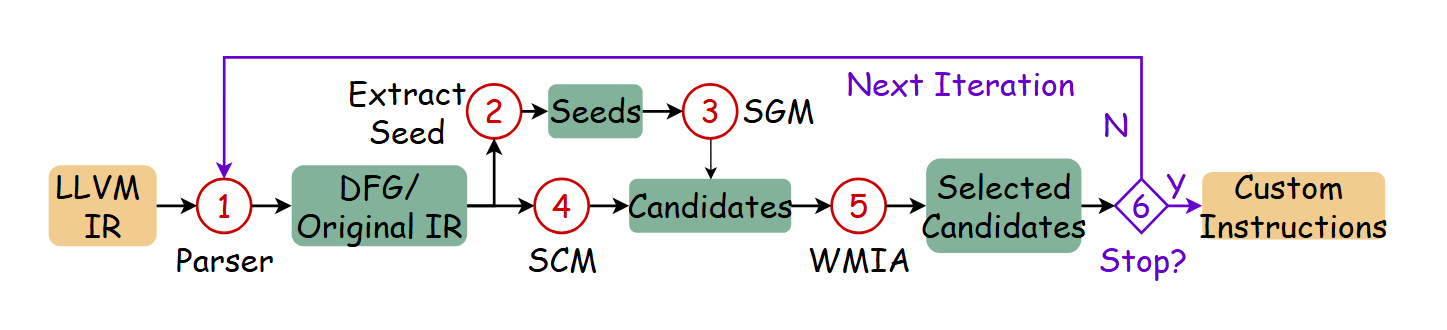

Extending existing architectures with customized instruction extensions is emerging to achieve high performance and energy efficiency for specific applications. Automated discovery of custom instructions (CIs) is well-studied nowadays, which requires exploring combinations of different types and quantities of operations, resulting in a vast search space. However, previous works typically use microarchitecture-agnostic cost models, leading to suboptimal CIs that may degrade performance. They leverage graph isomorphism to reduce area overhead, but few of them consider its potential to benefit performance-oriented exploration. To this end, we present CIExplorer, a framework for adaptive CI exploration. We propose a Seed Growth Method (SGM) based on a genetic algorithm to discover CIs with the consideration of graph similarity. We also propose a compiler-assisted modeling strategy that applies a microarchitecture-aware cost model to estimate the potential benefits of CIs in exploration. We evaluate our framework using various benchmarks in SPEC2006 and Mediabench on in-order, 2-wide OOO, and 4-wide OOO processors. Experimental results demonstrate that CIExplorer achieves average performance improvements of 1.09 × and 1.13 × and energy improvements of 1.07 × and 1.10 × compared with Novia and MaxClique.

Tensor program tuning is essential for the efficient deployment of deep neural networks. Search-based approaches have demonstrated scalability and effectiveness in automatically finding high-performance programs for specific hardware. However, the search process is often inefficient, taking hours or even days to discover optimal programs due to the exploration mechanisms guided by an accurate but slow-learned cost model. Meanwhile, the learned cost model trained on one platform cannot seamlessly adapt online to another, which we call cross-platform online unawareness.

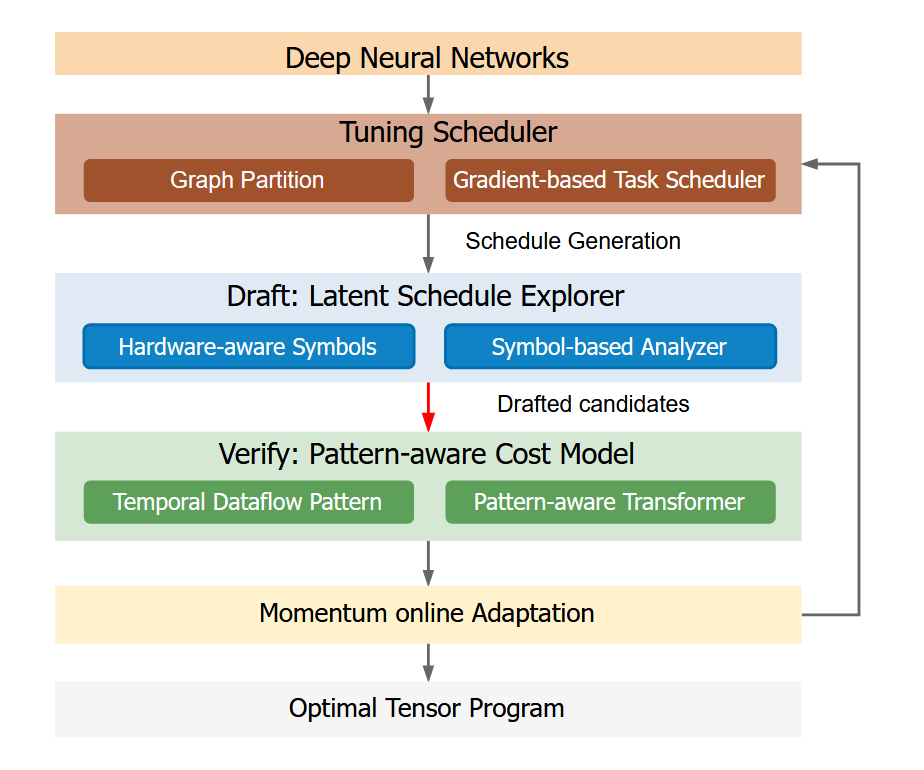

In this work, we propose Pruner and MoA-Pruner. Pruner is a "Draft-then-Verify" exploration mechanism that accelerates the schedule search process. Instead of applying the complex learned cost model to all explored candidates, Pruner drafts small-scale potential candidates by introducing a naive Symbol-based Analyzer (draft model), then identifies the best candidates by the learned cost model. MoA-Pruner introduces a Momentum online Adaptation strategy to address the cross-platform online unawareness.
We incorporate Pruner into the TVM and conduct extensive experiments on three GPU-based platforms. Results show considerable speedup in schedule search time. In online tuning scenarios, Pruner and MoA-Pruner achieve an average speedup of 2.6 × and 4.82 × compared to Ansor. In offline tuning scenarios, Pruner achieves an average speedup of 4.75 × and 4.05 × compared to TenSet and TLP, respectively. Furthermore, Pruner achieves an average speedup of 4.08 × compared to MetaSchedule on TensorCore.
